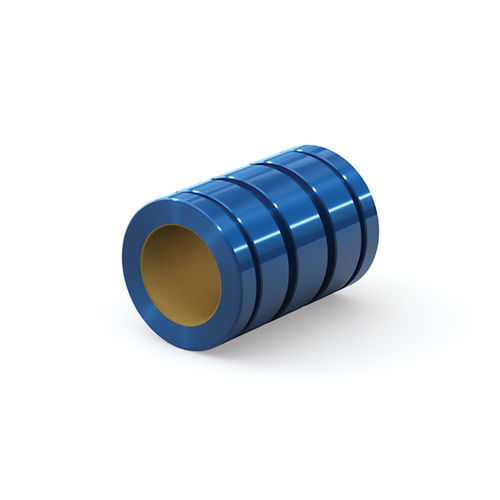

Linear plain bearing FM seriesanodized aluminumstainless steelbronze
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Material
- bronze, stainless steel, anodized aluminum, urethane, shell
- Other characteristics
- self-lubricating, thin-walled
- Applications
- for agricultural applications, for the food industry
- Inside diameter
Max.: 80 mm
(3.15 in)Min.: 5 mm
(0.2 in)
Description
Blue anodized aluminum shell identifies the ISO metric series, which is available in off-the-shelf industry standard sizes and interchangeable with linear ball bearings and some bronze bushings.
Conforms to ISO tolerance standards
ID sizes range from 5 mm to 80 mm Static Load Capacities up to 270 kN (61,000 lbs)
Standard Shell Material is Aluminum. Stainless Steel bearing shells available
FrelonGOLD® bearing liner standard. Frelon® J & Frelon® W optional
Self Lubricating for oil free operation
Optional urethane seals available from 20mm ID and up
External lubrication feature is an added option
Wide Temperature Range: -240° C/ 204° C (-400° F/ 400° F)
Vibration Damping
Custom modifications available – contact an Application Engineer for details
Catalogs
Linear Bearings and Shafting
140 Pages
Round Shaft Technology Catalog
140 Pages
