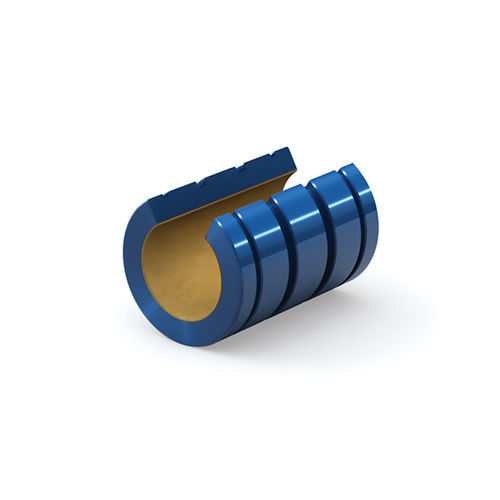

Linear plain bearing FMN seriesopenstainless steelaluminum
Add to favorites
Compare this product
Characteristics
- Type
- linear, open
- Material
- aluminum, stainless steel, urethane
- Other characteristics
- self-lubricating
- Applications
- for agricultural applications, for the food industry
- Inside diameter
Min.: 5 mm
(0.2 in)Max.: 80 mm
(3.15 in)
Description
Open version of ISO metric closed bearing, the opening is designed to allow use on fully supported shafting for greater system rigidity.
All the same features & benefits as the closed bearing
Standard Shell Material is Aluminum. Stainless Steel bearing shells available
FrelonGOLD® bearing liner standard. Frelon® J & Frelon® W optional
Self Lubricating for oil free operation
Optional urethane seals available from 20mm ID and up
External lubrication feature is an added option
Wide temperature range: -240° C/ 204° C (-400° F/ 400° F)
Vibration Dampening Custom modifications available – contact an Application Engineer for details
Catalogs
Linear Bearings and Shafting
140 Pages
Round Shaft Technology Catalog
140 Pages
