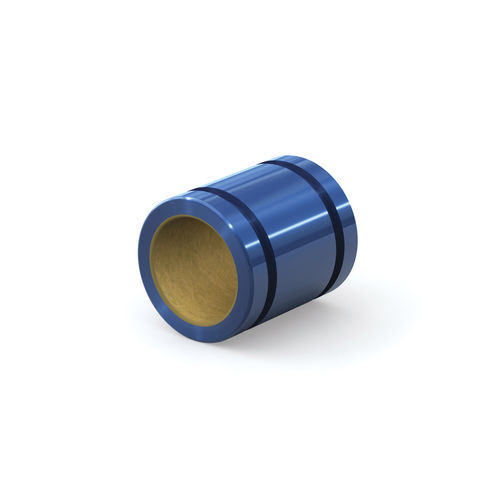

Linear plain bearing FMT seriesstainless steelaluminumthin-walled
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Material
- aluminum, stainless steel
- Other characteristics
- self-lubricating, compact, thin-walled
- Applications
- for agricultural applications, for the food industry
- Inside diameter
Max.: 50 mm
(1.97 in)Min.: 6 mm
(0.24 in)
Description
Same construction and smooth operation as the FM series but in a more compact package. Designed to be interchangeable with compact ball bearings and bronze bushings.
-Static Load Capacities up to 72 kN (16,000 lbs)
-Standard Shell Material is Aluminum. Stainless Steel bearing shells available
-FrelonGOLD® bearing liner standard. Frelon® J & Frelon® W optional
-Self Lubricating for oil free operation
-Wide temperature range: -240° C/ 204° C (-400° F/ 400° F)
-Vibration Dampening
-Custom modifications available – contact an Application Engineer for details
Catalogs
Linear Bearings and Shafting
140 Pages
Round Shaft Technology Catalog
140 Pages
