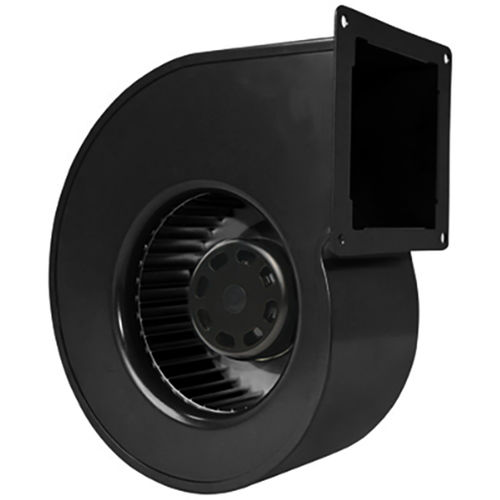

Single-inlet blower PS3N140B2E72-00
aircentrifugalsingle-stage

Single-inlet blower - PS3N140B2E72-00 - PBM Motor and Fan (Suzhou) Co.,Ltd - air / centrifugal / single-stage
Single-inlet blower - PS3N140B2E72-00 - PBM Motor and Fan (Suzhou) Co.,Ltd - air / centrifugal / single-stage
Single-inlet blower - PS3N140B2E72-00 - PBM Motor and Fan (Suzhou) Co.,Ltd - air / centrifugal / single-stage - image - 2
Single-inlet blower - PS3N140B2E72-00 - PBM Motor and Fan (Suzhou) Co.,Ltd - air / centrifugal / single-stage - image - 3
Single-inlet blower - PS3N140B2E72-00 - PBM Motor and Fan (Suzhou) Co.,Ltd - air / centrifugal / single-stage - image - 4
Add to favorites
Compare this product


Characteristics

Type
air
Technology
centrifugal
Number of stages
single-stage
Applications
for ventilation, air conditioning, suction
Other characteristics
high-pressure, single-inlet, waterproof
Flow

445 m³/h
(15,715.027 ft³/h)

Operating pressure

Min.: 450 Pa
(0.065 psi)

Max.: 500 Pa
(0.073 psi)

Nominal power

85 W
(0.116 hp)

Description

EC Single Inlet Blower Centrifugal Fans Φ140 EC Single Inlet Blower Centrifugal Fans Φ140 Material : Plastic PA66 Motor Type : EC external rotor motor Operating Temperature : - 25 ℃ ~ + 60 ℃ Protection Class : IP 55 Approvals : CCC ,CE Insulation Class : B EC centrifugal fans with Single Inlet Blower blades are used primarily for intake suction. Since most of the pressure build-up takes place in the impeller, there is generally no need for a scroll housing. The centrifugal fans have very good hydraulic efficiency and are ideally suited for high pressures. The centrifugal fans are used in applications such as central air conditioning units or building ventilation systems. This model no. is PS3N140B2E72-00. It works with 230V,115V voltage input. Diameter size is 140mm.Total height with motor base is 220.5mm. Impeller material is Galvanized Sheet. Key words: EC centrifugal fan, Single Inlet Blower centrifugal fan, centrifugal fan for ventilation
