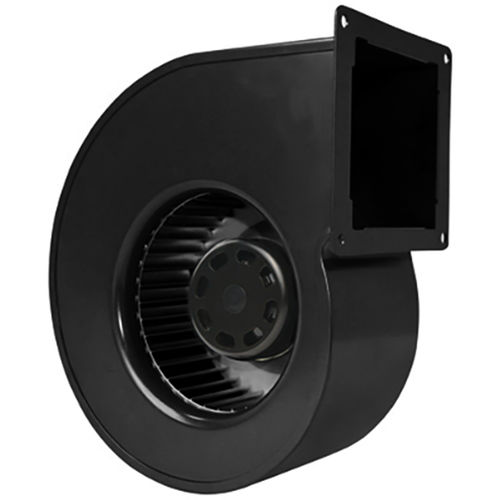

Single-inlet blower PS3N160B2E72-00

aircentrifugalsingle-stage

EC Single Inlet Blower Centrifugal Fans Φ160 EC Single Inlet Blower Centrifugal Fans Φ160 Material : Plastic PA66 Motor Type : EC external rotor motor Operating Temperature : - 25 ℃ ~ + 60 ℃ Protection Class : IP 55 Approvals : CCC ,CE Insulation Class : B EC centrifugal fans with Single Inlet Blower blades are used primarily for intake suction. Since most of the pressure build-up takes place in the impeller, there is generally no need for a scroll housing. The centrifugal fans have very good hydraulic efficiency and are ideally suited for high pressures. The centrifugal fans are used in applications such as central air conditioning units or building ventilation systems. This model no. is PS3N160B2E72-00. It works with 230V,115V voltage input. Diameter size is 160mm.Total height with motor base is 220.5mm. Impeller material is Galvanized Sheet. Key words: EC centrifugal fan, Single Inlet Blower centrifugal fan, centrifugal fan for ventilation
