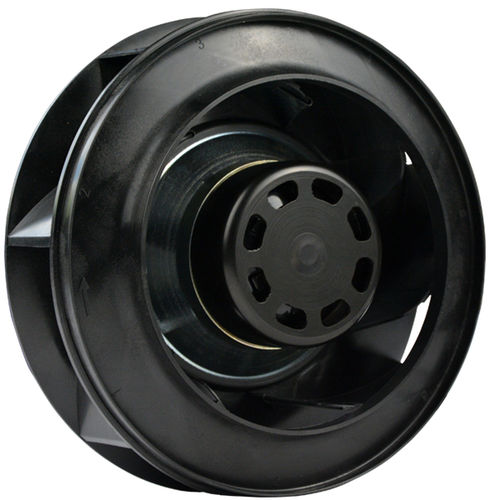

High-pressure fan PB3N133B2E72-00IP55centrifugalsuction
Add to favorites
Compare this product
Characteristics
- Type
- high-pressure, IP55
- Configuration
- centrifugal
- Function
- suction, ventilation
- Drive mechanism
- EC motor
- Material
- plastic, FRP
- Other characteristics
- backward curved
- Air flow
360 m³/h
(12,713.28 ft³/h)
Description
EC Backward Curved Centrifugal plastic fan EC Backward Curved Centrifugal plastic fan
Material : Plastic PA66
Motor Type : EC external rotor motor
Operating Temperature : - 25 ℃ ~ + 60 ℃
Protection Class : IP 55
Approvals : CCC ,CE
Insulation Class : B
EC centrifugal fans with backward-curved blades are used primarily for intake suction. Since most of the pressure build-up takes place in the impeller, there is generally no need for a scroll housing. The centrifugal fans have very good hydraulic efficiency and are ideally suited for high pressures. The centrifugal fans are used in applications such as central air conditioning units or building ventilation systems.
This model no. is PB3N133B2E72-00. It works with 220V,115V voltage input. Diameter size is 133mm.Total height with motor base is 88.1mm. Impeller material is propylene with propylene witn glass-fiber reinforced.
Key words: EC centrifugal fan, backward curved centrifugal fan, centrifugal fan for ventilation
