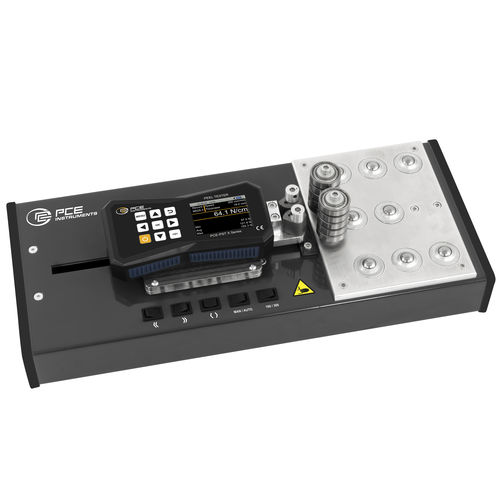

Digital dynamometer PCE-PST 1 X

ruggedportablefor peel tests

Dynamometer for peel test to measure the adhesion to substrates / mobile, rugged design / to 500 N / high accuracy / PC evaluation possible Technical Specification of the Dynamometer for Peel Tests PCE-PST 1 Measuring range 0 ... 500 N Measurable edge thickness 0.4 ... 3.5 mm Measurable plate thicknesses 10 ... 64 mm Travel speed 0.3 m/min Traverse 100 mm Measurement accuracy ± 0.1 % of the measuring range Resolution 0.1 N (10 g) Max. overload ± 20 % Display Graphic display 61 x 34 mm with backlight Operating modes manual / automatic Interface USB Environmental conditions -10 ... +40 °C Weight ca. 9 kg Power supply ~230 V / 12V; 1.2 A Dimensions (LxWxH) 490 mm x 210 mm x 150 mm
