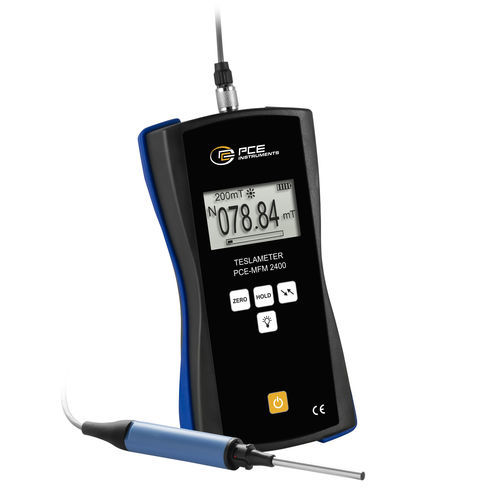

With a measuring range of 2,400 mT, the Gauss Meter covers a wide range of measuring tasks. The field strength meter has an accuracy of 1%. This makes the Gauss Meter a very precise measuring device. For example, the Gauss Meter can be used to test relays and permanent magnets for the existing magnetic field. The Gauss Meter is therefore used in production processes or in quality control.
Measuring range0… 200 mT
200… 2,400 mT
0 ... 2,000 G
2,000 ... 24,000 G
Accuracy± 1% of Mw.
Resolution0.01 mT
0.1 g
Measuring directionAxial
Magnetic fieldstatic (DC)
UnitmT, G
Power supply1 x 9 V block battery
Automatic shutdown Automatic shutdown after 5 minutes in idle status
Moduss
Hold mode, measurement mode
Display
Backlight digital 4-digit value display
Operating temperature0… +50 ° C
storage temperature-20… +50 ° C
Dimensions185 x 97 x 40 mm
Weight310 g
sensorAxial Hall sensor, cable length approx. 2 m
