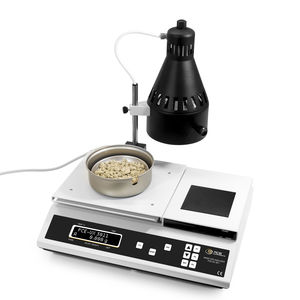

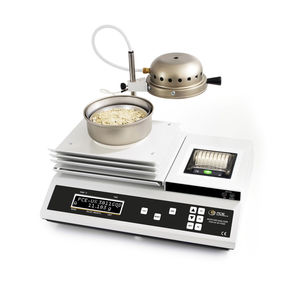

Laboratory moisture analyzer PCE-MA 200TS

gwith touch screenRS-232

Moisture Analyzer for precise determination of absolute moisture in various materials / Touch Display / easy operation / Data storage for 32 measurements / optional software The moisture analyzer has a measuring range of 0 ... 100% absolute humidity. The moisture analyzer is operated via the 5" large touchscreen. To measure the moisture content with the moisture analyzer, a sample is evenly distributed on the sample pan. The sample pan is then placed and sealed in the moisture analyzer. After setting all parameters, the moisture analyzer begins the measurement. The moisture analyzer determines the moisture content based on the measured weight difference, relative to the weight before and after drying the sample. The adjustable temperature range for the moisture analyzer is between 40 ... 165 °C. Thus, a specific drying temperature for the sample can be selected with the moisture analyzer. The generated drying temperature is produced by a built-in halogen lamp with a diameter of 90 mm. The drying process of the sample makes the moisture analyzer usable in various fields. Thus, the moisture analyzer finds its application, for example, in laboratories to measure the moisture of different powders, in quality control to determine the moisture of granules, or on farms to determine the moisture content of oats, grains, or wheat. A major advantage over devices using capacitive measuring methods is that the moisture analyzer operates independently of characteristic curves and provides more accurate results. The measured values can be transferred to a PC via the Serial RS232 interface of the moisture analyzer for analysis.
