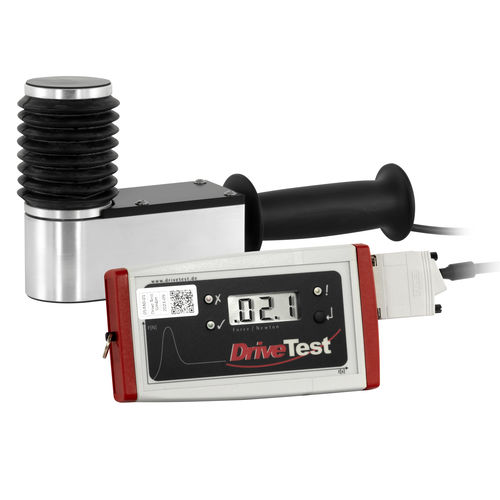

Closing force measuring device FM300-SY-25-750

digitalelectronicfor elevator doors

Closing force measurement system for elevator doors The closing force measuring device is an electronic measuring device for elevator doors and protective devices on machines. Typical use is both the final acceptance of new systems and regular inspection. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments. In the case of cyclical measurements on objects with several elevators, a quick and easy implementation is of great importance. For this purpose, software was developed that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements of all elevator doors in a building can be taken over, printed out in tabular form and saved in a database. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure. - Support of relevant standards - EN 81-1, EN 81-2, EN 81-20:2014, EN 81-50:2015, EN 14120 - Precise measurements - Robust design - Easy handling - Professional, comprehensive PC software – PinchPilot - Software support - integration into existing software structures possible - Extensive systems can be measured in one run – measured value acquisition module saves up to 100 measurements
