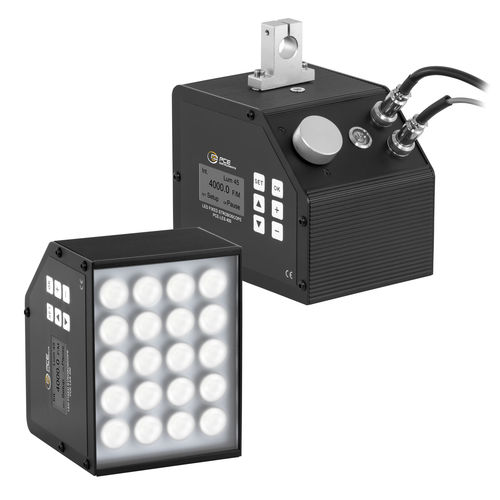

Stationary stroboscope PCE-LES 400

LEDcompact

Stroboscope / Stroboscope Light / light source 20 LEDs / 1590 lux @ 36000 FPM / 10 cm / phase shift: 0 ... 359 ° / flash duration: 1 ... 3 %, max. 100 µs / trigger input A Stroboscope / Stroboscope Light is a device for permanent installation that generates rapid flashes of light with energy-efficient and long-lasting LEDs. With a wide measurement range of 50 ... 36,000 FPM, a high resolution of 0.1 FPM and an accuracy of 0.01 %, it offers precise and reliable measurements. Our Stroboscope / Stroboscope Light can be triggered both internally and externally and supports four external trigger modes. The sensor supply is 12 V and 50 mA with a minimum pulse width of 20 µs. The flash duration varies between 1 and 3 % of the period with a maximum duration of 100 µs. A phase shift of 0 ... 359° can be set and this enables flexible adaptation to different requirements. With an illuminance of 1590 lux at 36,000 FPM and a light source consisting of 20 LEDs, this Stroboscope / Stroboscope Light produces intense and clear flashes of light. The 2.4-inch LC display ensures user-friendly operation. In addition, the device can double or halve the frequency of the light flashes (FPM), making quick adjustments possible. The compact dimensions of 150 x 115 x 130 mm allow easy mounting on an aluminium slot profile. Power is supplied via 220 V AC at 50 Hz, which ensures stable and reliable operation. Our Stroboscope / Stroboscope Lights are used in industry for machine monitoring and quality control, in scientific research for motion analysis and in medicine for special diagnostic procedures.
