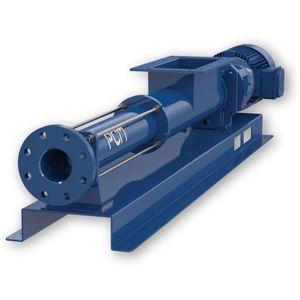

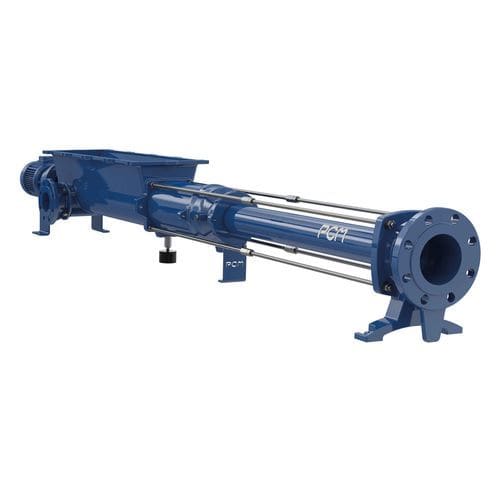

Water pump PCM EcoMoineau™ MVA-FFpaintfor adhesivesslurry
Add to favorites
Compare this product
Characteristics
- Fluid
- water, paint, for adhesives, slurry, for lubricants, fluid grease, for cement, foam concrete
- Operation
- electric
- Technology
- progressive cavity
- Mobility
- stationary
- Domain
- industrial, chemistry, for wastewater treatment, mining and quarrying, for the paper industry
- Applications
- transfer, handling, dosing, feed, for harsh environments, level control, volumetric dispensing, for pumping stations
- Fluid specification
- for abrasive fluids, for solids-laden fluids, for viscous fluids, for high-viscosity fluids, for paper stock
- Protection level
- rugged, robust
- Other characteristics
- mechanical, rugged, rugged, dry, with feed hopper
- Flow
Max.: 43.5 m³/h
(1,536.188 ft³/h)Min.: 2.1 m³/h
(74.1608 ft³/h)- Pressure
Max.: 24 bar
(348.091 psi)Min.: 6 bar
(87.023 psi)- Power
Max.: 30 kW
(40.79 hp)Min.: 1.5 kW
(2.04 hp)- Fluid temperature
Max.: 95 °C
(203 °F)Min.: 0 °C
(32 °F)
Description
Based on Moineau ™ technology, PCM EcoMoineau™ MVA-FF Progressive Cavity Pumps are designed to simplify the transfer and/or dosing of many complex fluids for a wide range of industrial applications. Many industries face harsh conditions when handling highly viscous, sticky, dry matter or large chunks of fluids or fluids that tend to buckle.
With a simple yet robust design, the PCM EcoMoineau™ MVA-FF series combines consistent productivity and profitability with even the most complex fluids.
The EcoMoineau™ MVA-FF series is designed for the transfer of highly viscous sticky sludge, with a high dry matter content, low flow rate or a tendency to arch. It is an ideal solution for pumping high viscosity or low flow fluids, which often require manual or gravity feed pumps.
Advantages of the PCM EcoMoineau™ MVA-FF force feeding pumps
Respect for the pumped product
Constant, pulsation-free flow
Flow rate proportional to speed
Easy maintenance
Valveless operation
Large hopper coupled with an Archimedean screw allows manual or gravity feeding of highly viscous or low flow fluids
Spare parts common to the entire PCM EcoMoineau™ range
Catalogs
No catalogs are available for this product.
See all of PCM‘s catalogs
