Calculation software SCORG™

CADdesignanalysis

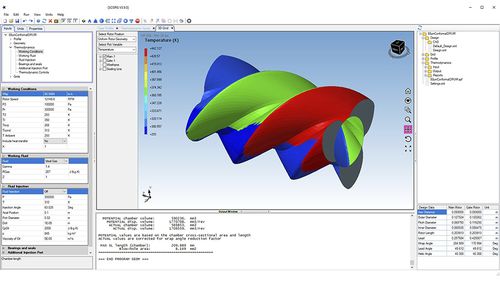

Design, Analyse and Optimise your screw machines with the industry leading analysis software SCORGTM. DESIGN Rotor Profile Design Importation and manipulation of rotor profiles from point coordinate files, scanning of the rotor geometry which can be obtained in SCORG by profile generation or extracted form CAD. Geometry Analysis Calculation and graphical representation of the working chamber volume, areas of the inlet, outlet and other ports and leakage areas between the working and neighbouring chambers. 3D Grid Generation Calculation of the computational numerical grid of moving rotor domain and stationary inlet and outlet domains which are supplied to commercial CFD solvers for analysis. ANALYSIS Multi-Chamber Thermodynamics Geometric analysis of flow features and preliminary performance analysis using multi-domain chamber model. Thermodynamic results can be used as initial conditions or boundary conditions for CFD, Structural Analysis by Finite Element Methods (FEM) or Fluid solid interaction (FSI) CFD Performance Calculation Allows accurate CFD performance prediction using commercial CFD codes such as Simerics MP+, ANSYS CFX, ANSYS FORTE, ANSYS FLUENT, STAR-CCM+ and open CFD codes such as OpenFOAM. OPTIMISATION System Analysis A GT-Suite system model can be used for design optimisation using a direct coupling with GT-Suite Thermodynamic Solver All SCORG parameters can be passed to the optimisation algorithm for analysis Optimised Rotor, Housing and Port CAD can be exported as STEP, IGES or STL. CFD Analysis Rotor and Port geometry can be optimised using the CFD Analysis.
