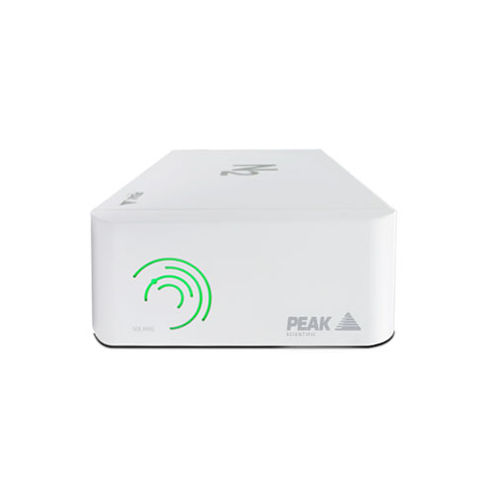

Pure nitrogen generator Solaris XE

laboratoryfor ELSDfor LC/MS

PEAK Scientific’s Solaris XE nitrogen generator has been engineered using membrane technology to meet the gas delivery requirements for labs using LC-MS/MS or multiple ELSDs. Solaris XE can operate with varying flow rates (up to 35L/min of high purity nitrogen), purity (up to 99.5%) and outlet pressure can be adjusted down from 116psi, offering a flexible solution for a variety of applications. The Solaris XE has been engineered to provide nitrogen to laboratories that utilize an external source of compressed air, which meets a minimum quality grade of ISO 8573-1:2010 Class 1.4.1, and its compact, space-saving chassis allows it to be placed on a benchtop, mounted on a wall or beneath an instrument taking up minimal space in the lab. Features • Nitrogen up to 35L/min, up to 116 psi and up to 99.5% purity • Variable outlet flow, pressure and purity • Compact, stackable* system maximizing the use of valuable laboratory floor or bench space • Colour indicative LED lighting for easy status awareness • Manufactured and tested to highest spec in UK, CE/FCC/CSA certified • Safer and more convenient than pressurized cylinders, dewars or bulk storage • 12 month on-site comprehensive warranty • Backed by [PEAK Protected] global on premise servicing and technical support Site & Installation • Gas Outlets Fitting: 1 x 1/4 " BSPP • Min Inlet Pressure: 80psi/5.5bar • Max Inlet Pressure: 145psi/10bar • Min Inlet Air Quality: ISO 8753-1:2010 Class 1.4.1 • Voltage: 100-230 ± 10% VAC • Frequency: 50 / 60 Hz • Current: 0.03 Amps • Heat output: 25 (BTU) • Max Operating Temp: 30°C / 86°F • Contaminants: Phthalate & BHT Free • Accreditations: CE, FCC, CSA
