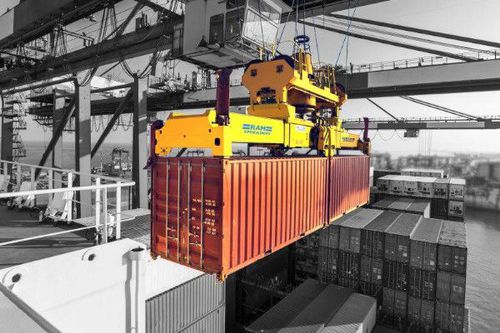

Container spreader RAM2900

verticaltelescopicautomatic

The 2900 series is a telescopic twin lift ship to shore container spreader, which is electro-hydraulically operated and controlled from the crane's cabin. The spreader can be designed to interface with new or existing crane headblocks and electrical communication systems. In twin lift mode, the RAM ‘CentreSpread’ function allows the spreader's centre gap to be adjusted when two 20ft containers are handled and not set at the standard centre gap distance. The centre gap can be adjusted when the spreader is either unladen or lifting two containers. Moreover, the spreader is fitted with a memory positioning system and automatic positioning system to “memorise” the gap between the two 20ft containers. 2910 - 20ft|40ft|45ft 2 x 20ft - 40 tons 2 x 30 tons 2920 - 20ft|40ft|45ft 2 x 20ft - 40 tons 2 x 25 tons 2930 - 20ft|40ft|45ft 2 x 20ft - 40 tons 2 x 32.5 tons 2940 - 20ft|40ft|45ft 2 x 20ft - 50 tons 2 x 32.5 tons Benefits Improve performance With the ability to lift more containers, the container handling cycle will be more productive. Flexibility Also, with the auto positioning and memory system, the spreader can be in a landside and a seaside position, enabling the crane operator to return to either of these positions. Variety of Container Sizes The telescopic arms can adjust to different container sizes, this gives the spreader the capability of handling a variety of sizes.
