Container spreader RAM 4131

fixedsemi-automatic

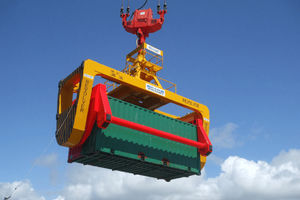

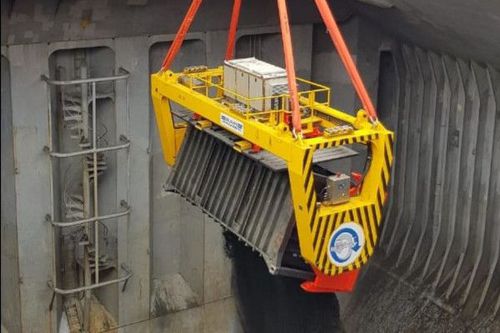

The award winning 4131 Revolver for handling bulk materials on a ship crane is manufactured from high quality steel and components. The Revolver's design has a safe weight lifting of 35 tonnes per cycle and ensures an efficient and reliable performance in a demanding container/bulk terminal environments. The Revolver's large gather guides enable a large landing platform for quick and easy landing on the container. Moreover, the the gather guides will support the container during rotation to prevent shear load on the twistlocks. The Revolver is equipped with floating twistlocks which allows a certain amount of both lateral and longitude movement, as opposed to fixed twistlocks which are common for jamming. Once the container is hoisted over the hatch, the Revolver removes the sealed lid in a semi-automatic process, and rotates the container 360 degrees unloading the commodity. The lid is then replaced back on the container and the cycle continues. The benefits to this containerised bulk handling system are endless... Twistlock Rotation - 1.5 seconds Container Rotation - 360 degrees Container Sizes Handled - 20ft (subject to model) Lifting Capacity - 35t SWL Commodities Handled - Copper Concentrate, Iron Ore, Scrap Metals, Soya, Mineral sands, Grains, Wood Pellets/Chips, Coal & Pet Coke, Bagged Materials, Zinc, etc. Benefits Clean & Green No dust is generated or exposed to the environment as containers are sealed shut. When unloading, the Revolver removes the lid semi-autonomously and then gently rotates at the bottom of the hatch. Product Protection
