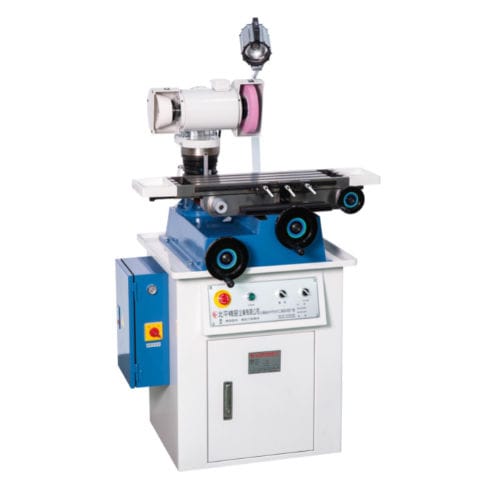

Universal sharpening machine PP-50

semi-automaticmanually-controlledprecision

1. The wheel heads can be rotated 360° and be intalled two wheels. Just rotate the wheel head, when need to grind the tool of different materials. It can increase the safety and save the time for changing & repairing the grinding wheel. 2. Adopt high precision cross roller guide on the table. The table is stable and can be operated smoothly. 3. Adopt cast iron with high toughness. It can keep the precision of the machine in the long term. 4. There is a series of grinding attachment to choose from. The types of tools to be ground include: Drill, tap, (taper)end mill, (corner)radius end mill, turning tool, radius turning tool, chamfer cutter, countersink cutter, engraving cutter, side milling cutter, hob, reamer, T-slot cutter, gun drill, hole saw, annular cutter, slitting cutter, punch, round bar, etc. Standard Accessories: 1. Grinding Wheel(Type:5A)-1 PC 2. Grinding Wheel(Type:11A)-1 PC 3. Grinding Wheel Flange-2 SETS 4. Flange Wrench-1 PC 5. Work Light-1 SET 6. Tools for General Use-1 SET 7. Work Cabinet-1 SET Optional Accessories: 1. SDC Electroplated Grinding Wheel 2. CBN Electroplated Grinding Wheel 3. 5C Collet (Min.3mm~ Max.25mm) 4. 5C Special Collet (32mm/42mm) 5. Morse Taper Sleeve (No.2) 6. Cast Iron Work Cabinet
