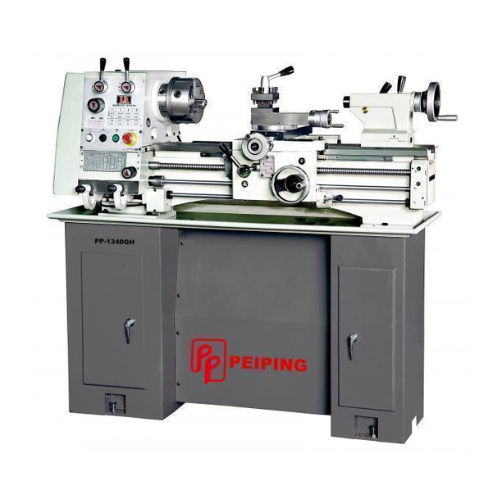

Conventional lathe PP-1340GH
horizontal5MT

Conventional lathe - PP-1340GH - PEIPING PRECISION ENTERPRISE CO., LTD. - horizontal / 5MT

Add to favorites

Compare this product

Go to the PEIPING PRECISION ENTERPRISE CO., LTD. website for more information

Characteristics

Control type

conventional

Spindle orientation

horizontal

Spindle mount

5MT

Spindle speed

Min.: 70 rpm
(439.823 rad.min-1)

Max.: 1,500 rpm
(9,424.778 rad.min-1)

Weight

320 kg
(705 lb)

Description

1. Bed is made of high tensile cast iron FC25. 2. Hardened and ground bedways. 3. D 1-4 camlock spindle. 4. Metric or imperial specification depend on customer's instruction. Standard Accessories: 1. Motor & Mortor Pulley 2. D 1-4 Back Plate for 6" Chuck 3. D 1-4 Back Plate for 8" chuck 4. Center Sleeve (MT5*MT3) 5. Center (MT3) 6. 4-way Tool Post 7. Change Gears 8. Tool Box & Kits Option Accessories: 1. Stead Rest 2. Follow Rest 3. Face Plate 10" (250mm) 4. Drill Chuck 1/2" (13mm) 5. Rolling Center (MT3) 6. 3-Jaw Scroll Chuck 6" (160mm) 7. 4-Jaw Independent Chuck 8" (200mm) 8. Floor Stand 9. Coolant Pump System 10. Taper Turning Attachment 11. Quick Change Toolpost 12. Single Saddle Stop 13. 4-Position Saddle Stop 14. Rear Splash Guard 15. Chuck Guard 16. 5C Collet Closer 17. DRO Equipment 18. Work Light
