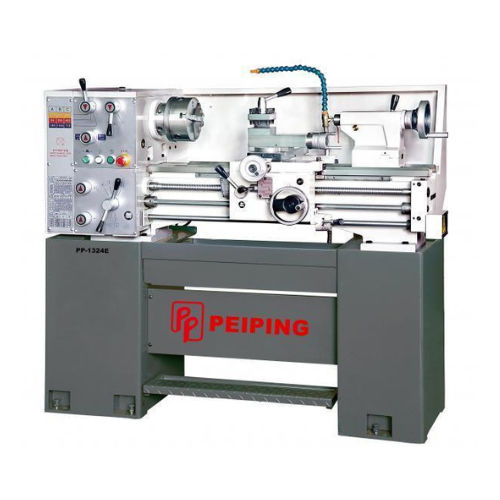

Conventional lathe PP-1324E
verticalCamlock D1-45MT

Conventional lathe - PP-1324E - PEIPING PRECISION ENTERPRISE CO., LTD. - vertical / Camlock D1-4 / 5MT

Add to favorites

Compare this product

Go to the PEIPING PRECISION ENTERPRISE CO., LTD. website for more information

Characteristics

Control type

conventional

Spindle orientation

vertical

Spindle mount

Camlock D1-4, 5MT

Performance

high-speed

Spindle speed

Min.: 82 rpm
(515.221 rad.min-1)

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Weight

580 kg
(1,279 lb)

Description

1. Bed is mad of high tensile cast iron FC25. 2. Hardened and ground bedways. 3. Harden and ground gears in head stock. 4. D 1-4 camlock spindle. 5. Metric or imperial specification depend on customer's instruction. Standard Accessories: 1. Gap Bed (1440E only) 2. D1-4 Back Plate for 6" Chuck 3. D1-4 Back Plate for 8" Chuck 4. Center Sleeve (MT5*MT3) 5. 4-way Tool Post 6. Complete Electric Control Unit 7. Change Gears 8. Floor Stand 9. 1/8HP Coolant Pump Equipment 10. Rear Splash Guard 11. Rapid Foot Brake 12. Tool Box & Kits Optional Accessories: 1. Steady Rest 2. Follow Rest 3. Face Piate 10" (250mm) 4. Drill Chuck 13mm (1/2") w/ arbor 5. Rolling Center MT3 6. 3-Jaw Scroll Chuck 6" (160mm) 7. 4-Jaw Independent Chuck 8" (200mm) 8. Taper Turning Attachment 9. Quick Change Tool Post 10. Single Saddle Stop 11. 4-position Saddle Stop 12. Chuck Guard 13. 5C Collet Closer 14. DRO Equipment 15. Work Light
