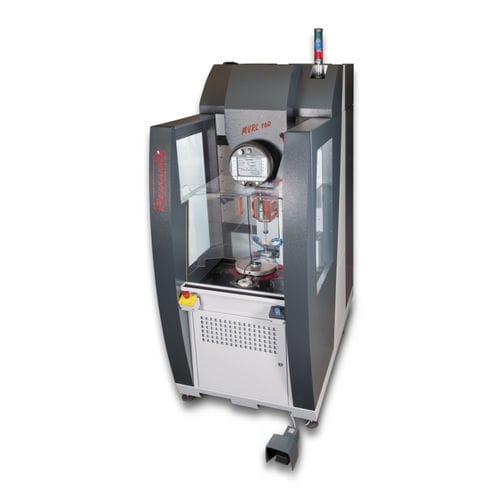

Vertical honing machine MVRL 160

multi-spindlesingle-spindle

1 or 2 spindles Honing range Ø 1,0 - 70 mm Honing length 0 - 340 mm Spindle speed 50 - 8'000 RPM Automatic expansion system (2 - 240 sec/0,01 mm) Standard table with normalized T slots Rotating table with 2, 4 or 6 positions Cooler positioned so that the heat does not influence the other modules 65 litres oil tank with 10 µm filter paper and 5 µm filter cartridge Rotating electrical cabinet mounted on left or right side to suit customer access Weight to ~ 1'700 kg Dimensions 1'900 x 900 x 2'200 mm
