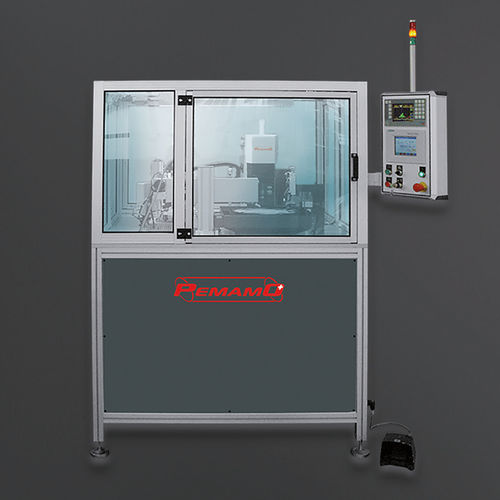

Vertical honing machine MVR 060 AT

automatic

Honing range Ø 0,6 - 2,5 mm Honing length 0 - 16 mm Spindle speed 2'000 - 7'000 RPM Automatic expansion system (1 à 120 sec/0,01 mm) Automatic loading and unloading during the honing cycle Rotating table with 4 positions Automatic centering of the clamping unit Measuring station with auto-size compensation for tool wear Secure enclosed working area Automatic filter unit Weight ~ 550 kg Dimensions 1'300 x 1'100 x 1'840 mm
