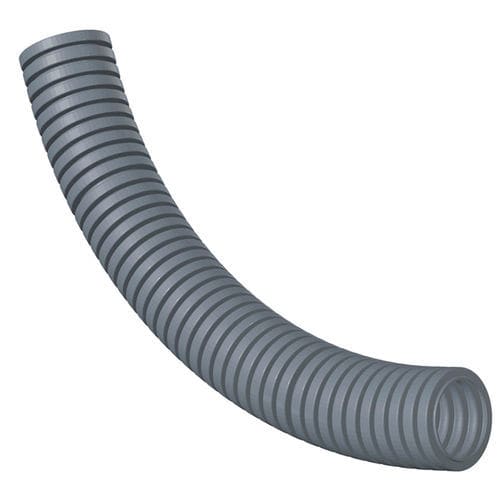

Protection conduit RB-PA
corrugatedfor electrical cablespolyamide

Protection conduit - RB-PA - Pemsa Cable Management, S.A. - corrugated / for electrical cables / polyamide
Protection conduit - RB-PA - Pemsa Cable Management, S.A. - corrugated / for electrical cables / polyamide
Protection conduit - RB-PA - Pemsa Cable Management, S.A. - corrugated / for electrical cables / polyamide - image - 2
Add to favorites
Compare this product


Characteristics

Type
protection
Structure
corrugated
Applications
for electrical cables
Material
polyamide, PA
Protection level
halogen-free, self-extinguishing, UL, standard, flame-retardant, IEC, IP67
Color
black, gray
Other characteristics
flexible
Diameter

Max.: 105.7 mm
(4.2 in)

Min.: 10 mm
(0.4 in)

Temperature

Max.: 90 °C
(194 °F)

Min.: -25 °C
(-13 °F)

Description

Very flexible corrugated conduit made of self-extinguishing polyamide 12 in grey RAL 7031 or black RAL 9005, halogen-free and with an IP67 protection rating. The RB-PA flexible conduit of the Pemsaflex® range is recommended for industrial applications, machinery and where high mechanical characteristics are required with a high degree of flexibility. Manufactured in polyamide 12. Self-extinguishing, halogen-free and flame-retardant. Excellent performance and flexibility in long work cycles. UL and CSA certification. BD approval. CE conformance with the 2014/35 directive and the IEC 61386 standard. Halogen-free according to EN 50267-2-1 standard. In accordance with standard EN 60204-1 (machine safety). It is recommended for use in industrial applications and electrical installations of machine tools, robot equipment and vehicles. Excellent flexibility and behaviour in outdoor applications.
