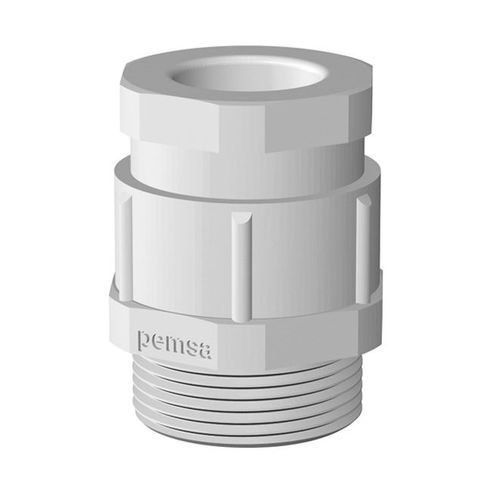

Polyamide cable gland HEXADIN-PIP54self-extinguishingflame-retardant
Add to favorites
Compare this product
Characteristics
- Material
- polyamide
- Protection level
- IP54, self-extinguishing, flame-retardant
- Other characteristics
- metric, halogen-free
- Cable diameter
Max.: 32 mm
(1.26 in)Min.: 3.5 mm
(0.14 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -25 °C
(-13 °F)
Description
Cable gland with TPV soft rubber seal and a protection rating of IP54 according to EN 60529. Available in metric thread from M12 to M40 and PG7 to PG36 thread for various cable diameters. Made of self-extinguishing polyamide 6 in grey colour RAL 7035.
Manufactured in polyamide 6. Self-extinguishing, halogen-free according to UNE/EN 60754-2 y UNE/EN 60754-1 and flame-retardant.
Protection index EN 60529: IP54.
Available in grey colour RAL 7035.
Working temperature: -25°C to + 90°C.
CE conformity with regard to directive 2014/35 and standard IEC 62444.
Its use is recommended for the protection of wiring and conductors in general applications and tertiary sector.
