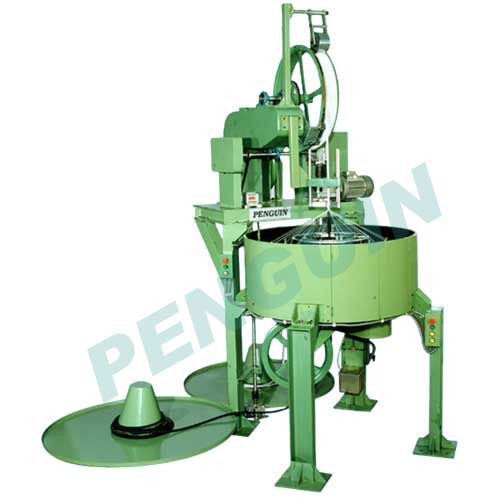

Wire braiding machine

verticalhorizontal

BRAIDMASTER is a high performance precision braider. This braider is engineered to give sustained performance over long periods. The machine is built with a steel framed structure. The drives and take-off are located at the top of the machine. The spindles can be accessed from either side through conveniently placed safety interlock doors. The deck assembly is engineered to ensure smooth sliding and exchange of shoes. Exceptional smooth running, minimum vibration and very low noise are salient features of the machine. The wire carriers are of proven design. They are engineered to perfection for trouble free performance. The carriers have bobbin capacity of 820 cc. Molded integral plastic carriers with shoes are available for yarn braiding applications on this machine. The machine can operate speeds upto 175 horn gear rpm. Pitch can be varied by change gears. Caterpillar pulling system for take up system is chain driven. The braiding machine is designed based on research and development experience for over a decade in the field of hose braiding machines. Penguin also manufactures cure tape wrapping and unwrapping machine, wire winding machine, spares and accessories for the hose industry.
