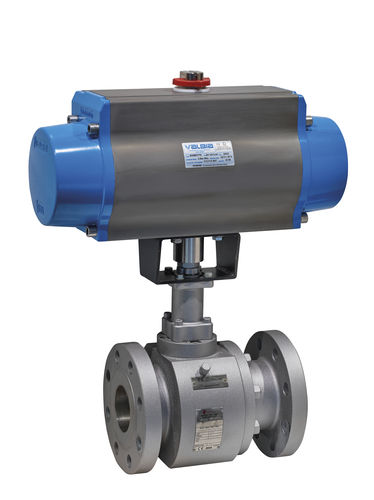

Ball valve APT2leverwith handwheelpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever, with handwheel, pneumatic
- Function
- flow control, shut-off
- Media
- for water, for oil, for chemicals, for fuel
- Body
- with flange, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, industrial, for process applications, for the gas industry, for the petroleum industry, refinery
- Number of channels
- 2-channel
- Fluid specification
- for aggressive media, for flammable fluids, for hazardous fluids
- Other characteristics
- ISO, DIN, ANSI, bidirectional, high-temperature, SIL 3, ATEX, fire-safe
- DN
Max.: 4 in
Min.: 1 in
- Pressure
Max.: 250 bar
(3,625.9 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 400 °C
(752 °F)Min.: -46 °C
(-51 °F)
Description
The PENTA APT2 has the capacity to figure out the problem of high temperature fluid handling typical of all PENTA metal seated ball valves. This product also has the quality of mass made by the standard ALFA Valvole models.
The APT2 series is constructed with metallic seats in a Pentafite that authorizes the making of metal seated ballvalves, without zero leakage. It is also maintenance-free without adding lapping of the seats to the balls.
Products of the series are added to the verification of compactness into the outside made by RWTUV which attribute to the limitations from German regulation TA-LUFT.
Catalogs
APT2
2 Pages
