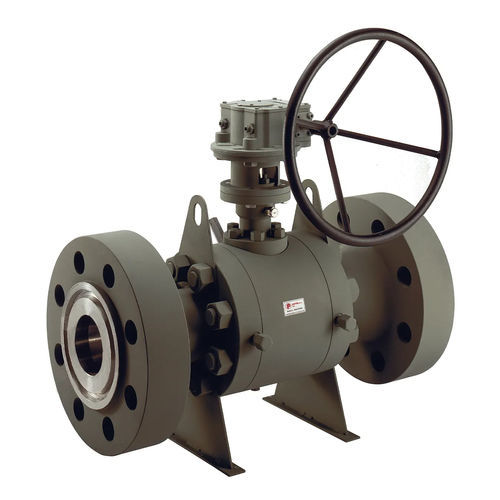

Floating ball valve SATleverwith handwheelpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever, with handwheel, pneumatic, electrically-actuated
- Function
- flow control
- Media
- for water, for oil, for chemical products, for fuel
- Body
- with flange, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, industrial, process, for the gas industry, for the petroleum industry
- Number of channels
- 2-channel
- Fluid specification
- for aggressive media, for flammable fluids, for hazardous fluids, for solids-laden fluids, for viscous fluids
- Other characteristics
- ANSI, bidirectional, high-temperature, SIL 3, ATEX, flameproof
- DN
Max.: 6 in
Min.: 0.5 in
- Pressure
Max.: 420 bar
(6,091.6 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 720 °C
(1,328 °F)Min.: -50 °C
(-58 °F)
Description
The Modello SAT has the best PENTA design for handling a broad range of applications. The primary purpose of the design philosophy is to use advanced solutions to attain the highest amount of reliability. Like other PENTA productions, the SAT valve features metallic seats in PENTAFITE to allow metal seated ball valves to be manufactured with zero leakage. As a result, a range of services with up to 1,436 degree Fahrenheit working temperatures or 720barg pressures can be continuously operated.
The elastic properties of PENTAFITE seats along with the fully-bolted construction make maintenance simple without the need for additional seat lapping against the ball. Seats with hard coating are also available. The valve is available with a Trunnion mounted or floating ball with bore reduction or full bore.
