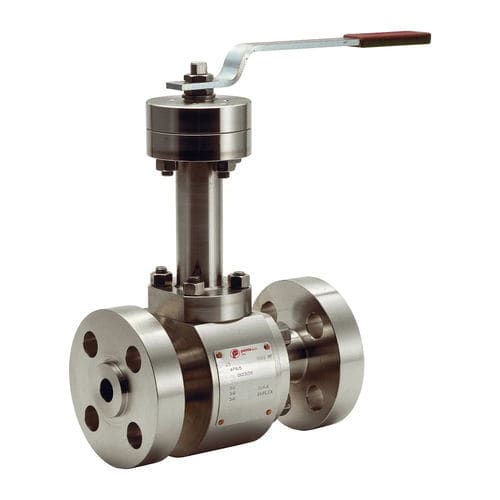

Floating ball valve SAT3leverwith handwheelpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever, with handwheel, pneumatic
- Function
- flow control
- Media
- for acids, for fuel
- Body
- with flange, stainless steel
- Applications
- for industrial applications, industrial, for the petroleum industry, for the mining industry, refinery, for abrasive products
- Number of channels
- 2-channel
- Fluid specification
- for corrosive fluids, for abrasive fluids
- Other characteristics
- ANSI, bidirectional, high-performance, SIL 3, ATEX, for abrasive fluids
- DN
Max.: 6 in
Min.: 0.5 in
- Pressure
Max.: 250 bar
(3,625.9 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 400 °C
(752 °F)Min.: -50 °C
(-58 °F)
Description
The revolutionized SAT3 model from SAT is designed with the insertion of two rings (called Scraper Rings) inside and outside the seats. The scraper rings clean ball surface during valve operation, protect the seats from abrasion by fluid solid content and avoid the wedging in of solids between seat and ball surface cause of valve blocking. Similar to all PENTA production, valves of SAT3 series are equipped with PENTAFITE metallic seats to manufacture metal seated ball valves with bubble tight (no leakage) making it suitable for various services with working temperatures up to 700°C. PENTAFITE seats with their typical elastic properties and fully bolted construction allows easy maintenance without the need of any additional lapping of the spare seats against the ball.
Catalogs
SAT3
3 Pages
