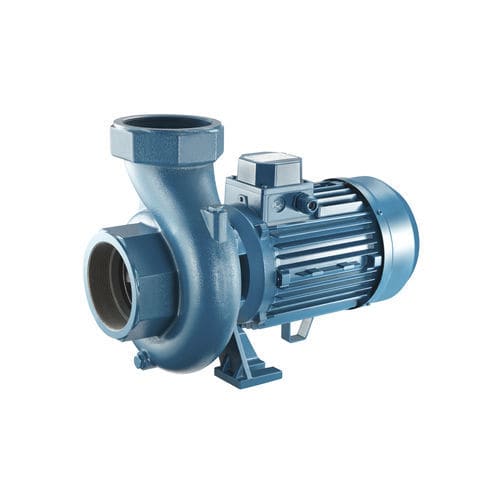

Centrifugal pump CS serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, agriculture
- Applications
- irrigation
- Voltage
- 400 V, 230 V
- Other characteristics
- high-flow, flow
- Flow
Min.: 100 l/min
(26.41721 us gal/min)Max.: 1,600 l/min
(422.67528 us gal/min)- Pressure
6 bar
(87.023 psi)- Head
Min.: 4.2 m
(13'09" )Max.: 21.5 m
(70'06" )- Power
Min.: 0.59 kW
(0.8 hp)Max.: 4 kW
(5.44 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 90 °C
(194 °F)- Length
Min.: 315 mm
(12 in)Max.: 515 mm
(20 in)- Width
Min.: 178 mm
(7.01 in)Max.: 250 mm
(9.84 in)- Height
Min.: 247 mm
(9.72 in)Max.: 330 mm
(12.99 in)- Weight
Min.: 14.5 kg
(31.97 lb)Max.: 46 kg
(101.41 lb)
Description
Single-impeller, medium to high-flow centrifugal pump with 2", 3" and 4" delivery openings. Mainly used in agriculture and applications requiring high level flow rate such as flood and sprinkler irrigation, and water withdrawal from reservoirs or canals.
