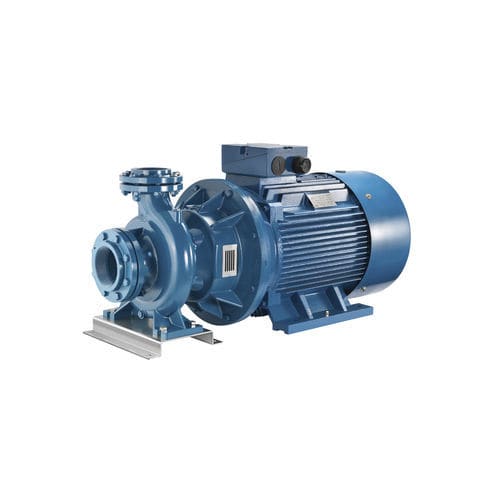

Centrifugal pump CMG serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Voltage
- 400 V
- Other characteristics
- standard, flange
- Flow
Min.: 1,600 l/min
(422.67528 us gal/min)Max.: 6,000 l/min
(1,585.03231 us gal/min)- Pressure
10 bar
(145.038 psi)- Head
Min.: 80 m
(262'05" )Max.: 93.9 m
(308'00" )- Power
Min.: 45 kW
(61.18 hp)Max.: 90 kW
(122.37 hp)- Fluid temperature
Min.: -10 °C
(14 °F)Max.: 90 °C
(194 °F)- Length
Min.: 1,130 mm
(44 in)Max.: 1,370 mm
(54 in)- Weight
Min.: 418 kg
(921.53 lb)Max.: 680 kg
(1,499.14 lb)
Description
Monobloc horizontal centrifugal pump, constructed in compliance with EN 733 standards, with stub-shaft and bracket for coupling to standard motors; widely used in water supplies, pressurisation and fire-fighting systems; standard supply with counter-flange.
