- Pentax Pumps

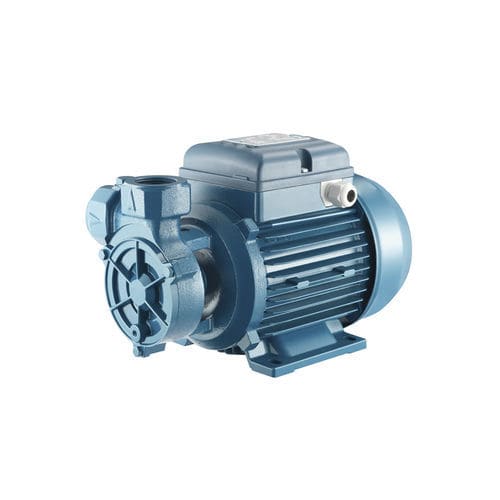

Peripheral pump CP serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- peripheral
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Material
- stainless steel, brass
- Voltage
- 400 V, 230 V
- Other characteristics
- suction, small
- Flow
Max.: 50 l/min
(13.2086 us gal/min)Min.: 5 l/min
(1.32086 us gal/min)- Pressure
8 bar
(116.03 psi)- Head
Max.: 61 m
(200'01" )Min.: 5 m
(16'04" )- Power
0.37 kW, 0.74 kW
(0.5 hp, 1.01 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)- Length
235 mm
(9 in)- Width
120 mm, 135 mm
(4.72 in, 5.31 in)- Height
165 mm, 172 mm
(6.5 in, 6.77 in)- Weight
5.7 kg, 9.2 kg
(12.57 lb, 20.28 lb)
Description
Peripheral positive displacement pump with side suction for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output; frontal brass insert avoiding the risk of blockage.
