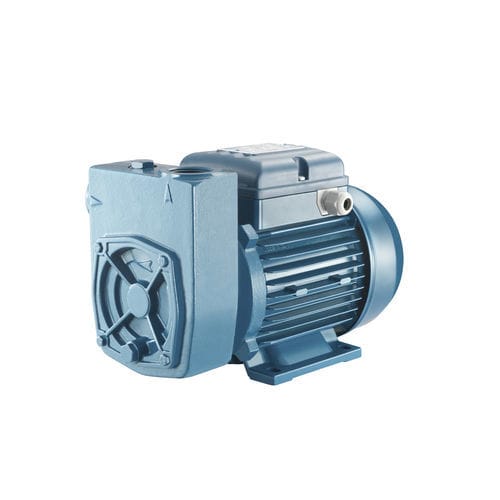

Liquid ring pump MD serieswaterelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- liquid ring
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer
- Material
- stainless steel, brass
- Voltage
- 400 V, 230 V
- Other characteristics
- suction
- Flow
Max.: 45 l/min
(11.88774 us gal/min)Min.: 5 l/min
(1.32086 us gal/min)- Pressure
8 bar
(116.03 psi)- Head
Max.: 53 m
(173'10" )Min.: 6 m
(19'08" )- Power
0.59 kW, 0.74 kW
(0.8 hp, 1.01 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)- Length
270 mm
(11 in)- Width
135 mm
(5.31 in)- Height
170 mm
(6.69 in)- Weight
11.1 kg, 11.8 kg
(24.47 lb, 26.01 lb)
Description
Volumetric pump with liquid ring impeller that gives considerable suction power to the pump. Particularly suitable for liquid transfer (including volatile liquids). The model has a brass front cover thus avoiding the risk of blockage.
