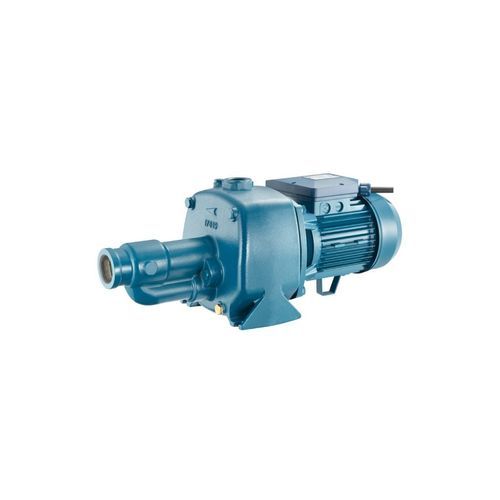

Centrifugal pump CAB serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Material
- stainless steel
- Voltage
- 400 V, 230 V
- Other characteristics
- small, automatic
- Flow
Max.: 140 l/min
(36.98409 us gal/min)Min.: 20 l/min
(5.28344 us gal/min)- Pressure
8 bar
(116.03 psi)- Head
Max.: 62 m
(203'04" )Min.: 32 m
(104'11" )- Power
1.1 kW, 1.5 kW, 2.2 kW
(1.5 hp, 2.04 hp, 2.99 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
596 mm
(23 in)- Width
220 mm
(8.66 in)- Height
240 mm
(9.45 in)- Weight
30 kg, 30.5 kg, 31.5 kg
(66.14 lb, 67.24 lb, 69.45 lb)
Description
Self-priming centrifugal pump for the water supply (also mixed with gas) of small and medium domestic and civil installations; when connected to autoclave tanks it provides an automatic pressurisation system.
