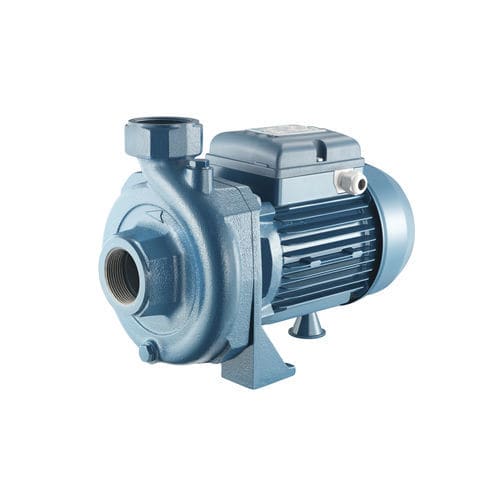

Centrifugal pump CR serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for agricultural applications
- Applications
- for industrial applications
- Voltage
- 380 V, 220 V
- Other characteristics
- small, open
- Flow
Min.: 50 l/min
(13.2086 us gal/min)Max.: 280 l/min
(73.96817 us gal/min)- Pressure
6 bar
(87.023 psi)- Head
Min.: 7 m
(22'11" )Max.: 19.8 m
(64'11" )- Power
0.59 kW, 0.74 kW
(0.8 hp, 1.01 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 90 °C
(194 °F)- Length
308 mm
(12 in)- Width
170 mm
(6.69 in)- Height
222 mm
(8.74 in)- Weight
13 kg, 14 kg
(28.66 lb, 30.86 lb)
Description
Medium delivery centrifugal pump for agricultural applications. Equipped with an open impeller that allows the pumping of non-clean liquids, guaranteeing the free passage of small solids (Ø max. 10 mm).
