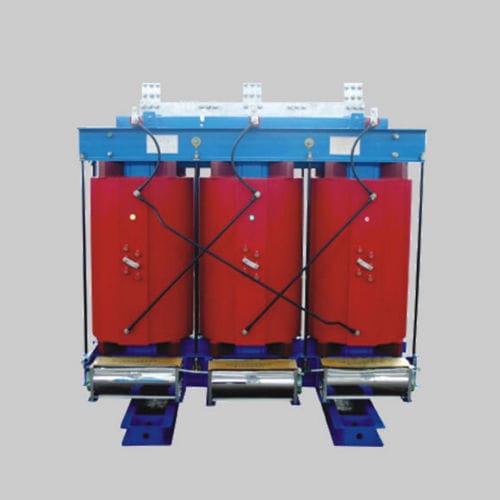

Distribution transformer SCR10 seriesdryindustrialfor indoor service
Add to favorites
Compare this product
Characteristics
- Type
- distribution
- Configuration
- dry
- Applications
- industrial, for indoor service
- Electrical characteristics
- three-phase
- Other characteristics
- energy-saving
- Electric power
Max.: 2,500 kVA
(3,399.0529 hp)Min.: 30 kVA
(40.7886 hp)- Primary voltage
Max.: 38,500 V
Min.: 6,000 V
- Secondary voltage
400 V
Description
SCR10 series epoxy cast resin dry type power transformer In the high voltage and high volume dry type transformers now produced by cast process domestically and abroad, stress, minute cracks, and spots where resin has not fully permeated may exist within the winding. Coil dry type transformers can completely make up for the above deficiencies,
with the characteristics of energy-saving, extremely high mechanical strength and electric strength, strong resistance to short circuit, never cracking winding, explosive-proof, high overload capacity, short production cycle, high stability upon cold and hot impact, etc., especially suitable for models of high voltage, high volume dry type transformers in flammable areas.
