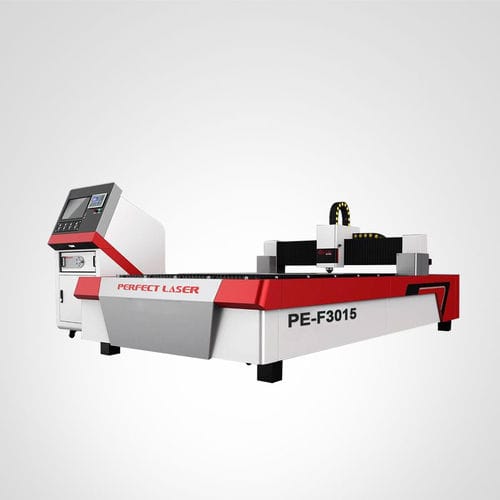

Fiber laser cutting machine PE-F1000-3015
for metalsheet metalCNC

fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for metal
Product handled
sheet metal
Control type
CNC
Associated function
multi-function
Applications
for industrial applications, for metal fabrication
Other characteristics
high-precision, high-speed, CE, high-efficiency, high-power, galvanized steel, multi-thickness
X travel

3,000 mm
(118.11 in)

Y travel

1,500 mm
(59.06 in)

Z travel

150 mm
(6 in)

Maximum cutting height

Max.: 12 mm
(0.5 in)

Min.: 5 mm
(0.2 in)

Cutting speed

Max.: 24,000 mm/min
(15.748 in/s)

Min.: 0 mm/min
(0 in/s)

Laser power

1,000 W

Weight

2,000 kg
(4,409.25 lb)

Description

This high-power voltage laser cutter for metal uses advanced Japanese made PANASONIC servo motor and a stabilized operating system to fully meet the requirements of fast-speed and high precision metal cutting. It’s designed to providing customers with efficient and cost-effective processing experience. 1.The optical laser path has no need for maintenance, and the power voltage and the gas consumption rate of the laser cutter for metal are low and the efficiency is very high. 2.With imported transmission accessories, the running accuracy of this laser cutter for metal is highly guaranteed. 3. The laser cutter for metal adopts an integral gantry mechanism and high-strength laser source, which has the characteristics of good rigidity, high stability and high processing quality. 4. The output power voltage of the laser cutter for metal is stable, the laser has a long service lifespan and easy to maintain. 5. The beam quality of this laser cutter for metal is good, the thermal deformation is small, and medium and thin sheet metal parts such as: carbon steel, stainless steel, aluminum alloy, copper and brass can be cut with high cutting precision quality. Tags: laser cutter for metal, laser cutter metal, laser cutter for steel

VIDEO
