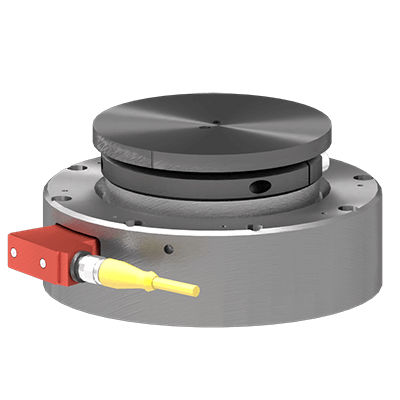

Air-operated robotic compliance unit / collision sensor QS-800

for pick-and-place machinesautomated loading/unloading

With moments trip point from 7.5 to 290 Nm, medium payload collision sensors will be the most appropriate models for your applications such as cutting or gripping. Repeatability - X, Y - 0,03 mm Repeatability - Z - 0,01 mm Rotational Repeatability - ± 0,03 ° Axial Compliance Vertical - 9,30 mm Compliance Angle - 5 ° Rotary Compliance - 25° Torque Trip Point - 53 - 255 Nm Moment Trip Point - 36 - 158 Nm Weight - 3,700 kg Diameter - 167,0 mm Profile - 81,5 mm Center of Mass - 46,8 mm Average response time - 4-8 ms Dust Protection - Foam collar supplied Switch - High reliability aircraft snap acting type. UL/CSA approved. Average cyclelife : 7 million cycles Operating Pressure - 1.0 - 6.0 bar Operating Temperature - Min. 0°C / Max. 100°C
