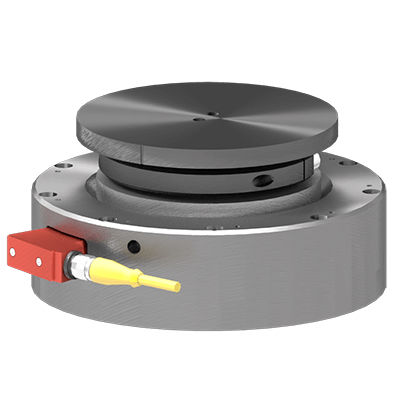

Air-operated robotic compliance unit / collision sensor QS-1500

for pick-and-place machinesautomated loading/unloading

Uniquely designed to help protect your automation equipment - from laboratory to car construction, our collision sensors meet your productivity issues. With moments trip point from 7.5 to 290 Nm, medium payload collision sensors will be the most appropriate models for your applications such as cutting or gripping. Repeatability - X, Y - 0,04 mm Repeatability - Z - 0,01 mm Rotational Repeatability - ± 0,03 ° Axial Compliance Vertical - 10,80 mm Compliance Angle - 5 ° Rotary Compliance - 25° Torque Trip Point - 87 - 371 Nm Moment Trip Point - 82 - 291 Nm Weight - 5,500 kg Diameter - 193,0 mm Profile - 95,0 mm Center of Mass - 54,6 mm Average response time - 4-18 ms Dust Protection - Foam collar supplied Switch - High reliability aircraft snap acting type. UL/CSA approved. Average cyclelife : 7 million cycles Operating Pressure - 1.0 - 6.0 bar Operating Temperature - Min. 0°C / Max. 100°C
