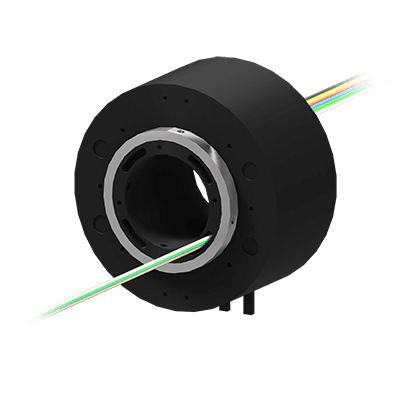

Ethernet slip ring SVTS C 05-S-A-00/12

hollow-shaftfor rotary tablesfor packaging

Through hole, I.D. 38.1 mm, O.D. 99.0 mm, 6 to 48 circuits and more with Ethernet option Ethernet (100BASE-TX ou 1000 BASE-T) or integrated pneumatic rotary joint option Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union. E1M/E1G option comes with an Ethernet channel (100BASE-TX or 1000BASE-T) over a Cat5e cable and 0P1/0P2 option offers an integrated pneumatic rotary joints and 6 to 24 power circuits. The SVTS C 05 series is charaterized by a through hole and uses a special technology. It allows to get multiple contact points between brushes and rings, low contact electrical resistance, reduced noise and low wear. No lubrication required. SVTS C 05 models offer E1M and E1G options embedding shielded twisted pairs and adapted rings shapes to suit high data rate applications up to 1Gb/s. E1M options has 2 shielded twisted pairs and is suitable for 100 Base-TX applications (Ethernet 100Mb/s, EtherCat, Profinet, ...), option E1G has 4 shielded twisted pairs to meet 1000 Base-T applications needs. For applications where a rotary air channel is needed 0P1/0P2 option allows you to use 6 to 24 power circuits with an integrated pneumatic rotary joint. Advantages Ideal for electrical power and signal transmission Through hole 38 mm Integrated specific network Cat5e cable Integrated pneumatic rotary joint Low friction torque High lifetime and reliability Compliant to CE and ROHS
