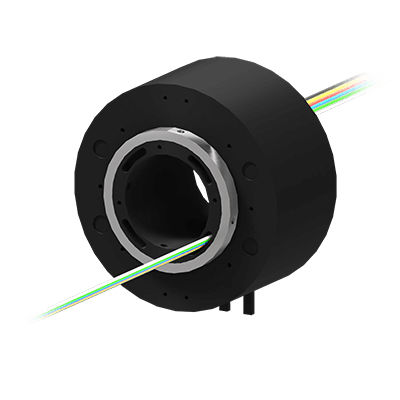

Hollow-shaft slip ring SVTS C 06-S-A-00/24for rotary tablesfor packagingfor robotics
Add to favorites
Compare this product
Characteristics
- Construction
- hollow-shaft
- Applications
- for rotary tables, for packaging, for robotics, for medical equipment, for cable reels
- Material
- stainless steel
- Other characteristics
- IP54, IP65, miniature
- Voltage
240 V, 600 V
- Primary current
5 A, 15 A
- Rotational speed
400 rpm
(2,513 rad.min-1)
Description
Through hole, I.D. 50.0 mm, O.D. 120.0 mm, 6 to 72 circuits and more
Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union.
The SVTS C 06 series is charaterized by a through hole and uses a special technology.
It allows to get multiple contact points between brushes and rings, low contact electrical resistance, reduced noise and low wear. No lubrication required. These slip rings are available in IP51, IP54 or IP65 and offer many customization possibilities.
Outside Diameter - 120.00 mm
Inside Diameter - 50.00 cm
Overall Length (L) - 90.50 mm
Protection rating - IP51
Temperature range - -20°C to +80°C (-40°C as option)
Contact - gold-gold (alloy)
Bearings - Miniature high-precision stainless steel ball bearings
Connector - -
Mounting -
ABS
