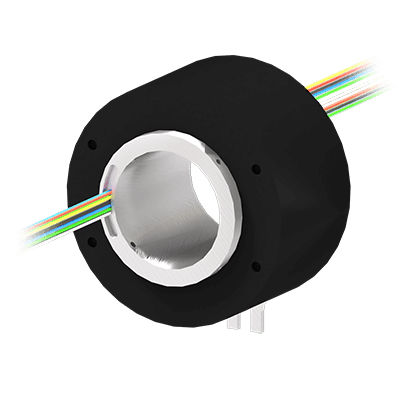

Hollow-shaft slip ring SVTS C 11-S-A-00/12
for rotary tablesfor packagingfor medical equipment

hollow-shaft slip ring
hollow-shaft slip ring
hollow-shaft slip ring
Add to favorites
Compare this product


Characteristics

Construction
hollow-shaft
Applications
for rotary tables, for packaging, for medical equipment, for cable reels
Other characteristics
IP65
Voltage

240 V, 600 V

Primary current

5 A, 15 A

Rotational speed

400 rpm
(2,513 rad.min-1)

Description

Through hole, I.D. 100.0 mm, O.D. 203.0 mm, 6 to 216 circuits Slip ring for transmission of electrical power and/or electrical signals with through hole for shaft or rotary union./p> The SVTS C 11 series is charaterized by a through hole and uses a special technology. It allows to get multiple contact points between brushes and rings, low contact electrical resistance, reduced noise and low wear. No lubrication required. Advantages Ideal for electrical power and signal transmission Through hole 100 mm High data rate Low friction torque High lifetime and reliability Compliant to CE and ROHS Benefits Transmission of electric power/signals and fieldbuses in one unit Mountable on the shaft mitigating the need of interface parts Combinable with fluidic rotary joints and FORJ Cost-effective Outside Diameter - 203.00 mm Inside Diameter - 100.00 cm Overall Length (L) - 81.50 mm Data Transfert - <=100Mbit/s Mounting - Thru-bore 100mm
