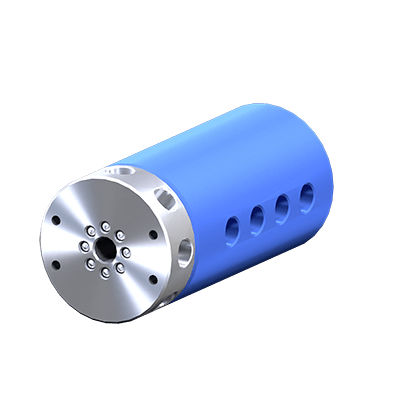

Water rotary union LT(M) 2381

for airfor vacuumfor gas

The perfect solution for vacuum or pneumatic applications The LTM Series rotary unions are small and lightweight available in 2, 4, 8, 12 & 24 passage versions. They are the perfect solution for vacuum or pneumatic applications. The LTM Series rotary unions feature all-aluminum construction and low-torque seals. They are suitable with a many industrial applications where pressure and/or vacuum is needed. They can be combined with slip rings thanks to the range of mounting accessories and their hollow shaft that allows pass-through elecrical wiring. Advantages Multipurpose solution for air and/or vacuum Easy integration Multi-channel and competitive cost Can be easily combined with electrical slip rings Benefits Avoid the need of complex piping arrangements Increased machinery performances Paiping maintenance mitigated Thru Bore - 11,2 mm Overall Diameter - 87,3 mm Overall length - 244,1 mm Min Torque - 2,03 Nm Passage Size - 9,5 mm Slip Ring Option - Compatible / available Maximum Vaccum 1 - 30 HG Temperature Range 1 - -18°C à 105°C 2
