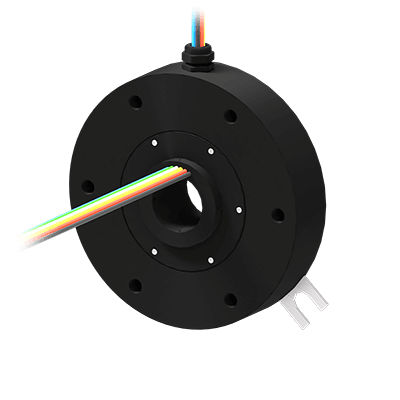

Flat slip ring SVTS F 01-S-A-03/17
for medical equipmentfor cable reels

flat slip ring
flat slip ring
flat slip ring
Add to favorites
Compare this product


Characteristics

Construction
flat
Applications
for medical equipment, for cable reels
Voltage

240 V, 400 V

Primary current

10 A

Rotational speed

Max.: 250 rpm
(1,571 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

This Slip ring is designed for signal and power transmission where height is limited. The SVTS F series is characterized by a through hole and uses a special technology. It allows to get multiple contact points between brushes and rings, low contact electrical resistance, reduced noise and low wear. Their special design comabines a maximum amount of circuits while keeping height size limited. THere are a lot of customization possibilities and these slips rings do not require any lubrication. Advantages Power circuits Low friction torque High lifetime and reliability Compliant to CE and ROHS Benefits Flat design allowing to keep small machinery dimensions Low maintenance Good quality/price ratio Outside Diameter - 180.00 mm Inside Diameter - 40.00 cm Overall Length (L) - 40.00 mm Protection rating - IP51 Data Transfert - <=100Mbit/s Mounting - Thru-bore 40mm
