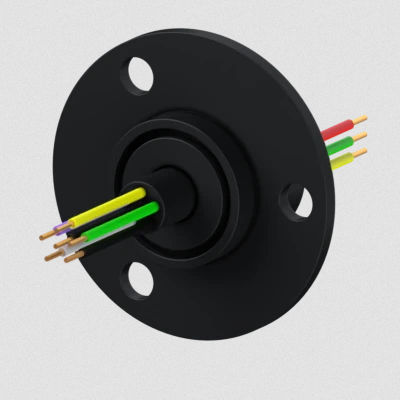

Slip ring specially suited to transmit critical signals, such as hi frequency and data rate, low current and voltages (strain gauges, thermocouples, measuring equipment, etc.) and offering a optionnal fieldbus or Ethernet channel (EtherCAT, Profinet, Profibus, etc.).
These units are available in many standard configurations from 3 to 36 circuits.
Due to their small ring diameter, the SVTS A 03 series grants low peripheral speed between bushes and rings, as well as reduced dynamic imbalance that means very low wear and long life.
Advantages
SVTS A 03 models offer E1M and E1G options embedding shielded twisted pairs and adapted rings shapes to suit high data rate applications up to 1Gb/s. E1M options has 2 shielded twisted pairs and is suitable for 100 Base-TX applications (Ethernet 100Mb/s, EtherCat, Profinet, ...), option E1G has 4 shielded twisted pairs to meet 1000 Base-T applications needs. Offering alongside multiple power/signal cominations they are also available in IP51 or IP65 version
Option : 100 Base-TX or 1000 Base-T channel with RJ45 plug
High data rate
Gold alloy rings and brushes
Low friction torque
High lifetime and reliability
Compliant to CE and ROHS
Benefits
Optimal signal transmission (gold-gold technology)
Cost-effective
