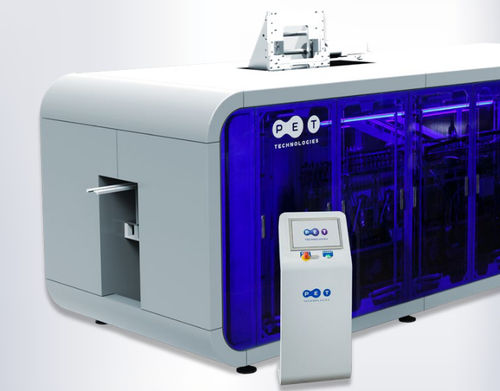

Stretch blow molding machine APF-Max 8

for PETfor PET bottlesautomatic

Innovative automatic blow molding machine for PET bottles with volume 0.2-2.0l and output up to 14 000 bph. Quick changeover for wide variety of preforms with neck diameter 18 – 48 mm. CE certificate and conformity to HACCP. Equipment type - Automatic Output, bph - up to 14000 bph Your product - Water and CSD, Beer, Milk and dairy products, Oil and vinegar, Household & automotive APF-Max has 8 modifications with output between 6000 and 14000 bph, 0.2 – 3.0 l. All the equipment range has quick changeover for another preform type with 18 mm - 48 mm neck diameters Quick change and Flexibility: • - 4-6-8-cavities configurations • - Option to increaser the output by installation of additional blow mold cavities • - Modular blow mold system with separated mold cavities • - Individual block of valves for each mold cavity with air recovery system NIR heating and low total installed power: • - Near infrared (NIR) heating system consumes less energy, its waves are more intensive • - More efficient system than convectional IR • - 8 heating modules with only 7 lamps • - 108 mandrels in the heater All-electric configuration: • - 6 servo drives: in the mold closing unit, stretching unit, heater rotation, preform transfer to the blowing unit and bottle outfeed system • - Pressure control in the blow mold • - Preblow controlled via PLC • - Automatic temperature regulation User-Friendly concept and innovative design: • - Streamline Form and alternative coloring that meet corporate style • - P LC that stands alone From the machine makes it easier to operate • - Ail the communications are connected From the top oF the machine • - Electric cabinet backside
