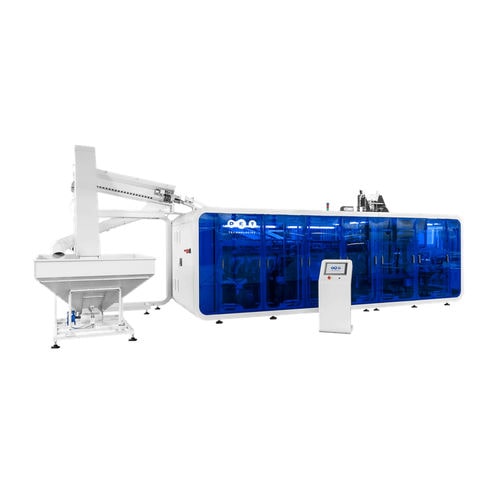

Stretch blow molding machine APF-Max 6HF

for PETfor PET bottlesautomatic

Innovative automatic blow molding machine for hot fill PET bottles with output up to 7 000 bph. All-electric configuration. CE certificate and conformity to HACCP. Output, bph - up to 7 000 bph Your product - Water and CSD APF-Max has 8 modifications with output between 6000 and 14000 bph, 0.2 – 3.0 l. All the equipment range has quick changeover for another preform type with 18 mm - 48 mm neck diameters. N IP heabing and low total installed power: • - Near infrared (NIR) heating System consumes less energy, its waves are more intensive • - More efficient System than convectional IR • - 8 heating modules with only 7 lamps • - 108 mandrels in the heater All-electric configuration: • - 6 servo drives: in the mold closing unit, stretching unit, heater rotation, preform transfer to the blowing unit and bottle outfeed System • - Pressure control in the blow mold • - Preblow controlled via PLC • - Automatic température régulation User-friendly concept and innovative design: • - Streamline form and alternative coloring that meet corporate style • - PLC that stands alone from the machine makes it easier to operate • - Ail the communications are connected from the top of the machine • - Electric cabinet backside PPF-Max blow molder compact overall dimensions due to the NIR heating System make it easy to transport both by land and by sea to 5 continents. PET Technologies service centers and représentatives in Europe, Psia, North and South America support with the maintenance and start-up.
