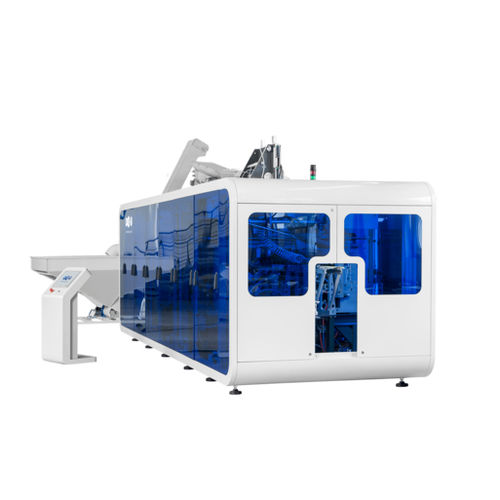

Stretch blow molding machine APF-Max 4

for PETfor PET bottlesautomatic

Innovative automatic blow molding machine for PET bottles with volume 0.2-2.0l and output 7 000 bph. Modular concept with option to increase the output by installation of additional blow mold cavities from 4 to 8. CE certificate and conformity to HACCP. Output, bph - up to 7 000 bph Quick change and Flexibility: • - Option to increaser the output by installation of additional blow mold cavities • - Modular blow mold System with separated mold cavities • - Individual block of valves for each mold cavity with air recovery System NIR heabing and low total installed power: • - Near infrared (NIR) heating System consumes less energy, its waves are more intensive • - More efficient System than convectional IR • - 8 heating modules with only 7 lamps • - 108 mandrels in the heater All-electric configuration: • - 6 servo drives: in the mold closing unit, stretching unit, heater rotation, preform transfer to the blowing unit and bottle outfeed System • - Pressure control in the blow mold • - Preblow controlled via PLC • - Automatic température régulation User-Friendly concept and innovative design: • - Streamline form and alternative coloring that meet corporate style • - PLC that stands alone from the machine makes it easier to operate • - Ail the communications are connected from the top of the machine • - Electric cabinet backside
