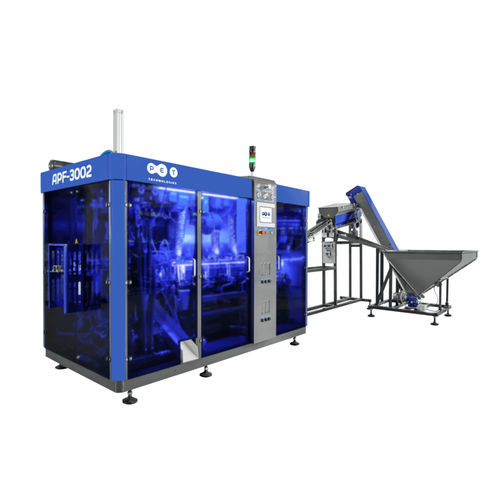

Stretch blow molding machine APF-3002
for PETfor PET bottlesautomatic

Stretch blow molding machine - APF-3002  - PET Technologies - for PET / for PET bottles / automatic
Stretch blow molding machine - APF-3002  - PET Technologies - for PET / for PET bottles / automatic
Stretch blow molding machine - APF-3002  - PET Technologies - for PET / for PET bottles / automatic - image - 2
Stretch blow molding machine - APF-3002  - PET Technologies - for PET / for PET bottles / automatic - image - 3
Stretch blow molding machine - APF-3002  - PET Technologies - for PET / for PET bottles / automatic - image - 4
Stretch blow molding machine - APF-3002  - PET Technologies - for PET / for PET bottles / automatic - image - 5
Stretch blow molding machine - APF-3002  - PET Technologies - for PET / for PET bottles / automatic - image - 6
Add to favorites
Compare this product


Characteristics

Type
stretch
Treated material
for PET
Finished product
for PET bottles
Other characteristics
automatic, for the food and beverage industry, for the automotive industry
Hollow part volume

Max.: 2 l
(0.5 gal)

Min.: 0.2 l
(0.1 gal)

Overall width

2,800 mm
(110.2 in)

Overall lenght

6,400 mm
(252 in)

Overall height

2,300 mm
(90.6 in)

Description

Automatic blow molding machine for PET bottles with volume 0.2-2.0l and output 3 000 bph. Patented mold closing system: 1500 bph from one mold cavity. CE certificate and conformity to HACCP. Output, bph - up to 3 000 bph Your product - Water and CSD, Beer, Milk and dairy products, Oil and vinegar, Household & automotive Output - 3 OOO bottles/h * Blowing pressure - up to 40 bar Low pressure - 8-10 bar High pressure air demand - 3,6 m3/min* Low pressure air demand - 1,3 m3/min* Cooling liquid température - 7-9 °C Voltage supply - 400V / 50Hz Installed power - 41 kW Weight - 2350 kg
