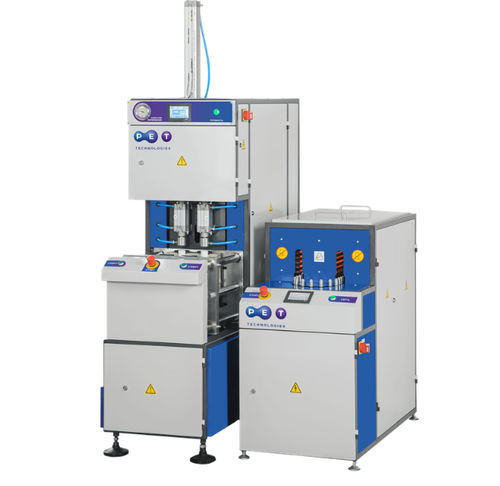

Stretch blow molding machine UPF-5 for PETfor PET bottlesfor the beverage industry
Add to favorites
Compare this product
Characteristics
- Type
- stretch
- Treated material
- for PET
- Finished product
- for PET bottles
- Other characteristics
- semi-automatic, for the beverage industry, for the automotive industry
- Hollow part volume
Max.: 6 l
(1.6 gal)Min.: 0.2 l
(0.1 gal)- Overall width
600 mm
(23.6 in)- Overall lenght
1,200 mm, 1,600 mm
(47.2 in, 63 in)- Overall height
1,100 mm, 2,200 mm
(43.3 in, 86.6 in)
Description
Universal semiautomatic blowing machine for PET bottles 0.2 – 6.0l with output 800 bph. Universal and flexible – ideal solution with low investment cost.
Neck diameter - 28-80 mm
Low pressure - 10 bar
Blowing pressure - 15 (up to 25) bar
Low and high pressure air demand - 0,8m³/min for bottle 1.5 l
Cooling liquid temperature - 7-9 °С
Voltage supply - 400 V / 50 Hz
Installed power - 8 kW
Weight - ~ 500 + 220 kg
VIDEO
