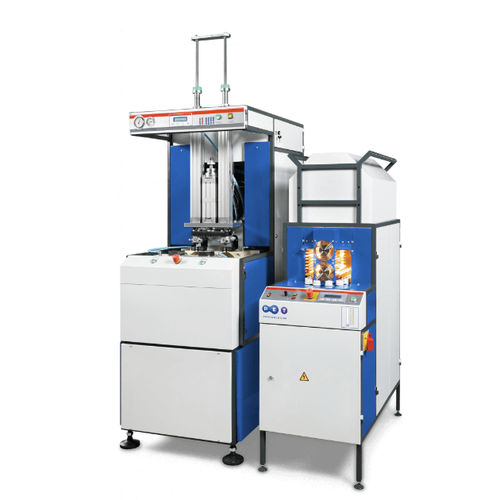

Stretch blow molding machine UPF-10 for PETfor PET bottlessemi-automatic
Add to favorites
Compare this product
Characteristics
- Type
- stretch
- Treated material
- for PET
- Finished product
- for PET bottles
- Other characteristics
- semi-automatic, for the food and beverage industry
- Hollow part volume
Max.: 10 l
(2.6 gal)Min.: 0.2 l
(0.1 gal)- Overall width
600 mm, 800 mm
(23.6 in, 31.5 in)- Overall lenght
1,425 mm, 1,700 mm
(56.1 in, 66.9 in)- Overall height
1,720 mm, 2,300 mm
(67.7 in, 90.6 in)
Description
Universal semiautomatic blow molding machine for PET bottles 0.2 – 10.0l with output 800 bph. Easy to adjust and maintain.
Neck diameter - 28-48 mm
Blowing pressure - 8-10 bar
Low pressure - 15(up to 25) bar
Low and high pressure air demand - 0,8m³/min for bottle 1.5 l
Cooling liquid temperature - 7-9 °С
Voltage supply - 400 V / 50 Hz
Installed power - 23 kW
Weight - 700 kg + 225 kg
VIDEO
