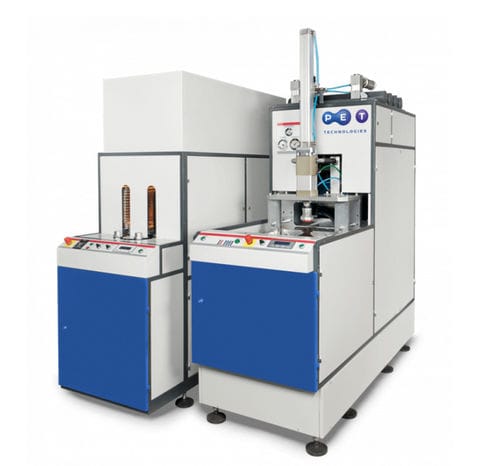

Stretch blow molding machine UPF-30B for PETfor PET bottlesfor the beverage industry
Add to favorites
Compare this product
Characteristics
- Type
- stretch
- Treated material
- for PET
- Finished product
- for PET bottles
- Other characteristics
- semi-automatic, for the beverage industry
- Hollow part volume
Max.: 30 l
(7.9 gal)Min.: 2 l
(0.5 gal)- Overall width
760 mm, 810 mm
(29.9 in, 31.9 in)- Overall lenght
1,980 mm, 2,485 mm
(78 in, 97.8 in)- Overall height
2,190 mm, 2,440 mm
(86.2 in, 96.1 in)
Description
Universal semiautomatic blow molding machine for PET jars with neck diameter up to 130 mm. Reliable and easy to use.
Output - 300 bph*
Neck diameter - 90-130 mm
Blowing pressure - up to 35 bar
Low pressure - 8-10 bar
High pressure air demand - 1,9m³/min for jar 8.0 l
Cooling liquid temperature - 7-9 °С
Voltage supply - 400 V / 50 Hz
Installed power - 15 kW
Weight - ~ 1700 + 500 kg
